1. Model Number:LJDX-250X5
2. Voltage:380V 50Hz
3. Number of Cutters:5 pcs

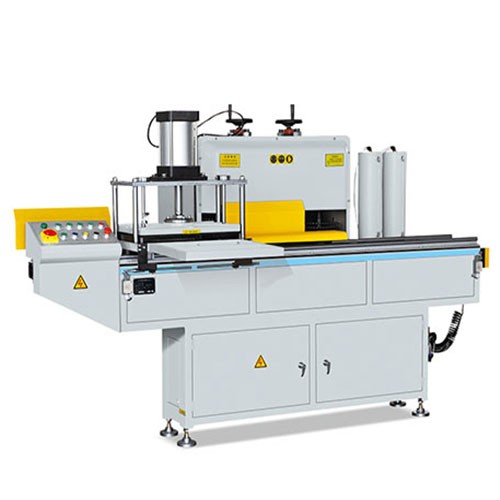

Auto End Milling Machine Main Features
1.Clamp one time can processing multi-piece profiles, which increase the processing efficiency
2.Universal milling blades can be adjusted in up/down before/after directions and not made extra, which to fit for different processing requirement and ensure the efficient working
3.Convenient tool adjustment to meet different processing requirement, need not ordering tools when process various profile, thus can decrease cost and save time
4.Motor phase sequence protector is installed in the motor system, to improve the security of the system
5.Working system adopts the gas-liquid damping device, balanced and reliable.
Main Parameters Details:
Cutting Motor Power | 4*2.2kw |
Input voltage | Input voltage |
Main Rotary Speed | 2800r/min |
Milling Saw Diameter | 250mm |
Cutter Diameter | Inner 32mm Outside 300mm |
Motor Main Shaft Diameter | 32mm |
Feeding Space of Worktable | 1500mm |
Max processing tenoning size | 40--85mm |
Contour dimension | 2680*1020*1600mm |
Weight | 885kgs |
