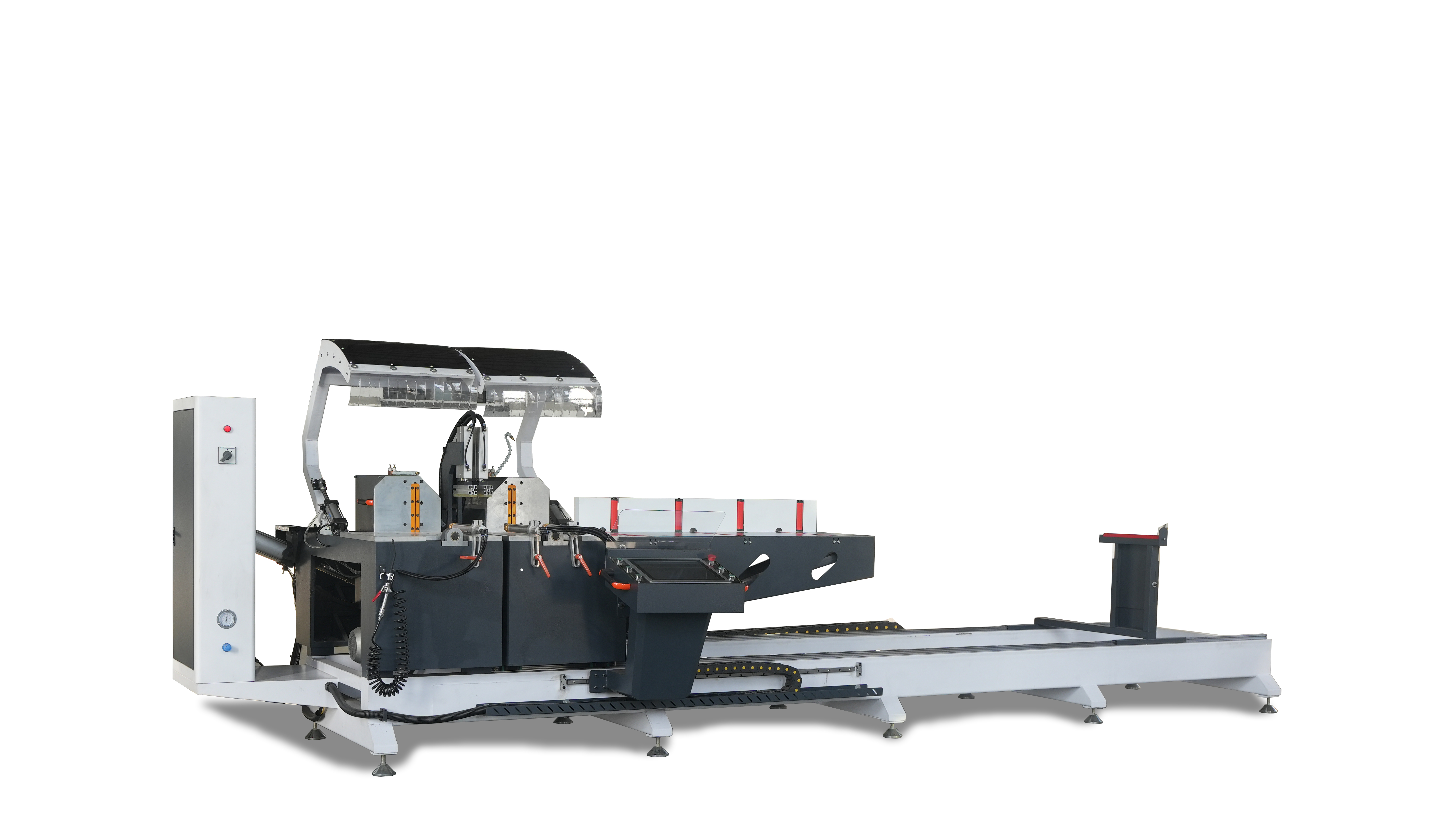

Super-wide Double-head Cutting Machine for Cutting Aluminum Profile

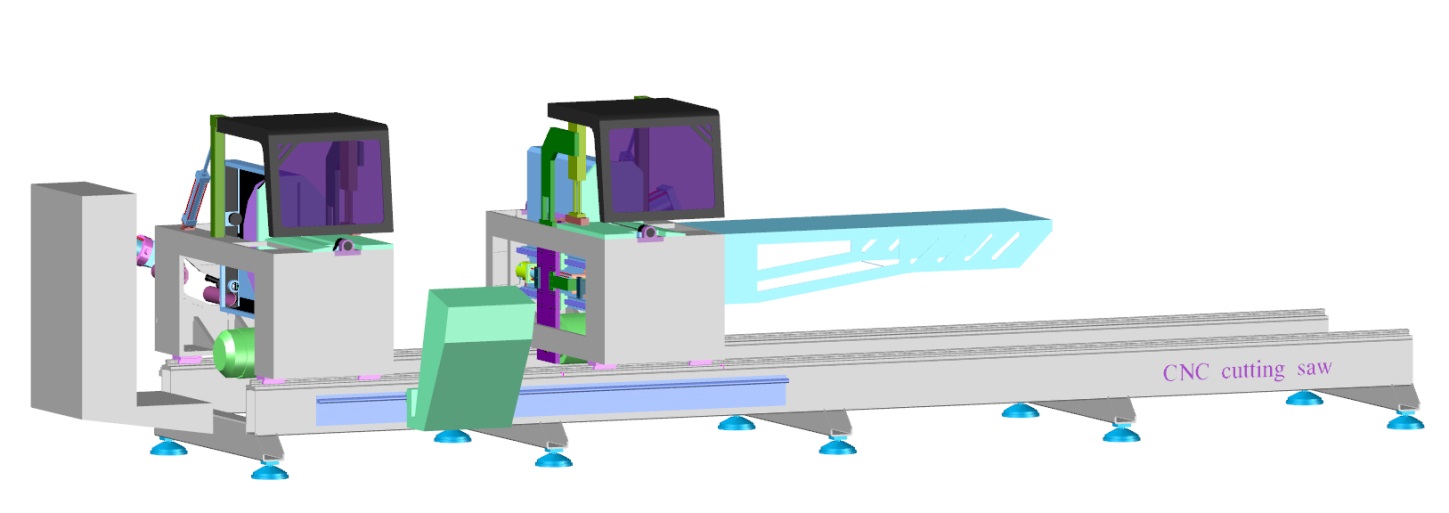

In order to meet the cutting needs of different users, we specially designed saw blades that can cut ultra-wide profiles. The machine body adopts foundry technology to ensure the rigidity and stability of the bed.


The left saw head is a fixed saw head. The right saw blade The head moves left and right on the guide rail. There is a linear motion pair between the carriage and the guide rail. The left and right movement of the saw head is light and flexible, ensuring the smoothness of the movement. The saw blade is fed by a servo motor or a cylinder.The control system of the aluminum alloy profile CNC cutting saw has the function of stepless speed adjustment. According to the processing needs, the feed and return speed can be adjusted, so that it has the function of slow feed and quick return.


After the workpiece is placed on the workbench, as long as the operator presses the button according to the operating procedures, the machine can complete the workpiece positioning, clamping, cutting, blade return, release and other processes. The length of work cutting is completed by a 3-axis CNC system. The design of the aluminum alloy profile CNC cutting saw takes the safety of workers into full consideration. The moving parts of the saw head are all covered in an openable, solid safety cover.

https://youtu.be/Z8cDAgQw3Nc?si=a15XWn0iQI17AVaz
