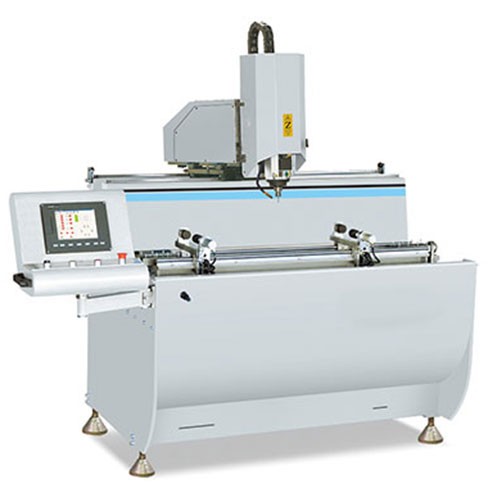

CNC Milling machine for aluminum

1. Model Number: LXF-CNC-1200
2. Voltage:380V 50Hz
3. Processing Length:1200mm

CNC Milling machine for aluminum Main Features

1.Applicable for drilling holes, milling grooves, processing circular holes and special shaped holes, plane engraving of aluminium alloy profiles.

2.System adopts Taiwan Syntec CNC controller.

3.Adopting electric spindle; high precision high safety and reliability.

4.X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision

5.By using programming software to auto-matically transform and process G code easy operation; high efficiency and low labour intensity.

6.Workbench can turn180°,90°~0°~+90°; it can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision

Technical Parameter Details

Power supply	380v/50Hz
Input power	3kw
Main axis rotate speed	18000rpm
Air pressure	0.5-0.6MPa
X-axis stroke	1200mm
Y-axis stroke	300mm
Z-axis stroke	280mm
Processing range	100 x 140mm
Handle type	ER25×Φ8
Dimension	2200×1500×1950mm
Weight	610kg
