1. Model Number:JNF4-1220
2.Voltage:380V 50Hz
3. Max Processing Size:Ø200mm length1200mm

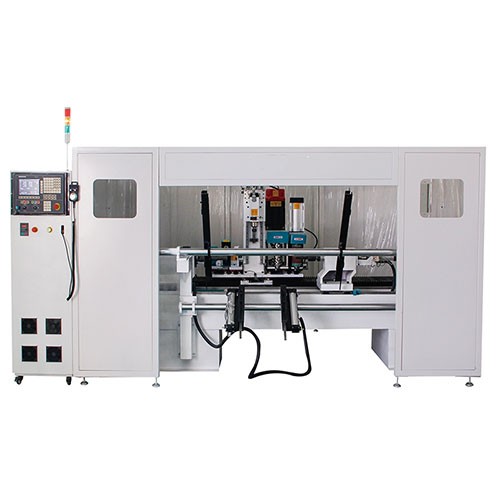

CNC wood Lathe Center Main Features
1.Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief stabilized and never deformed.
2.Adopting advanced 5 Axis ATC Control system which is easy for operating even without a computer
3.Adopt Taiwan TBI ball screw and HIWIN helical squared guide rail with high precision and longevity.
4.Compatible with several CAD/CAM design software
5.Rotating speed can be adjusted by inverter also you can see speed on control cabinet panel.
6. One time tool setting to finish the whole work piece.
8.Turning,broaching , engraving, milling, hollowing,drilling and sanding can be done with one machine by high speed.
9.with 8 tools ATC,9 KW Italy HSD spindle.
Technical Parameter Details:
Max processing length | 1200mm |
Max turning diameter | Ø200mm |
Air Pressure | 5-6MPa |
Power supply | AC 380V 3 phase 50HZ/60HZ（can custom 220V 3phase） |
Max working speed | Turning: 1000mm/min |
Milling/polishing: 2000mm/min | |
carving: 6000mm/min | |
broaching: 3000mm/min | |
Minimum accuracy | 0.02mm |
Transimission type | ballscrew for X,Y, Z axis |
Guider | Taiwan Hiwin orbit |
Moter rotating speed | turning: 0-3000r/min |
broaching/carving: 0-18000r/min | |
milling: 0-6000r/min | |
polishing: 0-3000r/min | |
Motor power(customization is available) | turning motor: 5.5kw |
broaching/carving motor: 4.5ks | |
milling motor: 5.5kw | |
polishing motor: 3kw | |
Control System | 4 axis ATC CNC control system |
Motor | Japan Yaskawa Servo motor |
Driver | Japan Yaskawa Servo driver |
Inverter | 11kw Fuling inverter |
Drawing Software | 5 axis drawing software ATC coming with the machine,easy processing |
Supported command | G code |
Package Size | 4000*2300*2100mm |
