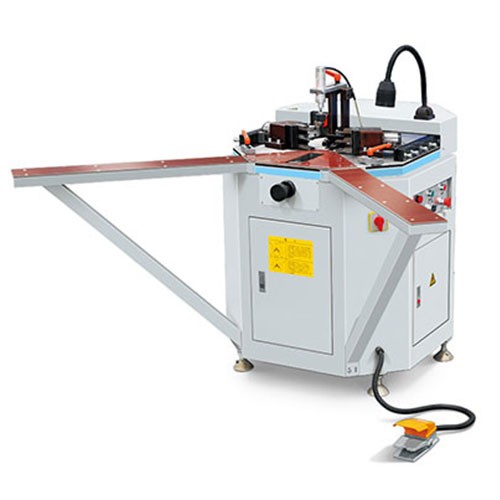

Corner Crimping Machine

1. Model Number:LMB-160
2. Voltage:380V 50Hz
3. Profile Crimping Height:30-160mm

Corner Crimping Machine Main Features

1.Using the weighting design, effectively ensure the accuracy of the use of equipment and maintain long-term accuracy

2.Increased the corner space and propulsive force, the maximum is 7tons, could make large size window.

3.Lifting positioning mechanism, feeding and reclaiming is more convenient.

Technical Parameter Details

Voltage	380V 50Hz
Motor power	3Kw
Motor rotation rate	1420r/min
Rated oil pump pressure	16Mpa
Working pressure of gas source	0.6-0.8Mpa
Gas consumption	10L/min
General pressure of corner combining	68KN
Corner crimping casing movement journey	35mm
The adjustable range of the main location block	80mm
Processing profile height(Max)	160mm
Contour dimension	1200×1200×1360mm
Weight	about 890kg
