1. Model Number:LJS-290X90
2. Voltage:380V 50Hz
3. Copy-routing range: 290 X 90mm

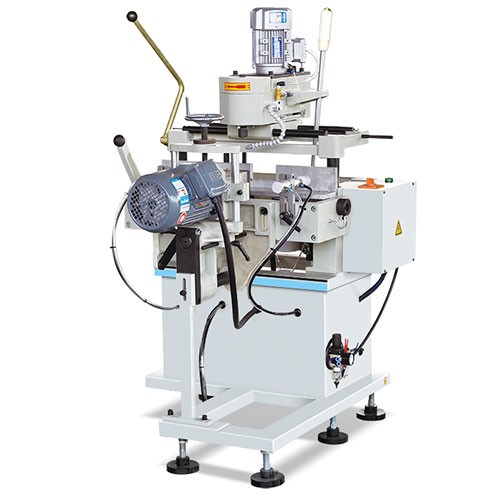

Lock Hole Processing Machine Main Features
1.Used for copy-routing processing various kinds of holes, grooves and water-slots
2.It has features of compact structure and small volume; the air pressure drives the clamping.
3.3.It can achieve continuous copy-routing milling, easy operation and safety
Technical Parameter Details
Operation Air Pressure | 0.6-0. 8MPa |
Input Voltage | 380V/50HZ |
Diameter of the three-hole drilling head | Ø12 |
Centers distance of the three-hole drilling head | 21.5×21.5mm |
Input Power | 2.5Kw |
Cutter Diameter | φ5mm φ8mm |
Copy-routing range | 290 X 90mm |
Overall Dimension | 1000×1130×1600mm |
Weight | about 220kg |
