1. Model Number:SCX01-1/2/3/4
2. Voltage:220V/50Hz
3. Number of Working Heads:1, 2, 3 or 4 is available

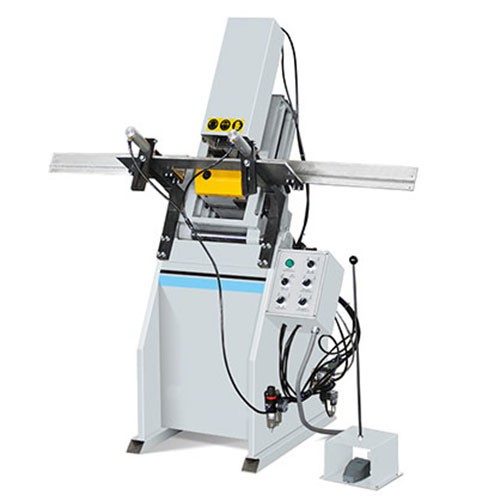

Water Slot Milling Machine Main Features
1. Used for milling all kind of water slots and air pressure balance grooves.
2. The milling head is provided with two, to meet the different requirements of the processing profile.
3. Clamping one time to finish water slot processing.
4. The length of milling water slot within 60mm is adjustable and its usage range is wide.
Technical Parameter
Input Voltage | 220V/50Hz |
Input Power | 0.38Kw X2/3/4 |
Air Pressure | 0.5-0.8MPa |
Air Consumption | 30L/min |
Main shaft Revolution | 2500r/ min |
Cutter Diameter | Ø4 Ø5mm |
Slot Depth | 30mm |
Slot Length | 30-60mm |
Overall Dimension | 2100×860×1500mm |
Weight | 200KGS |
