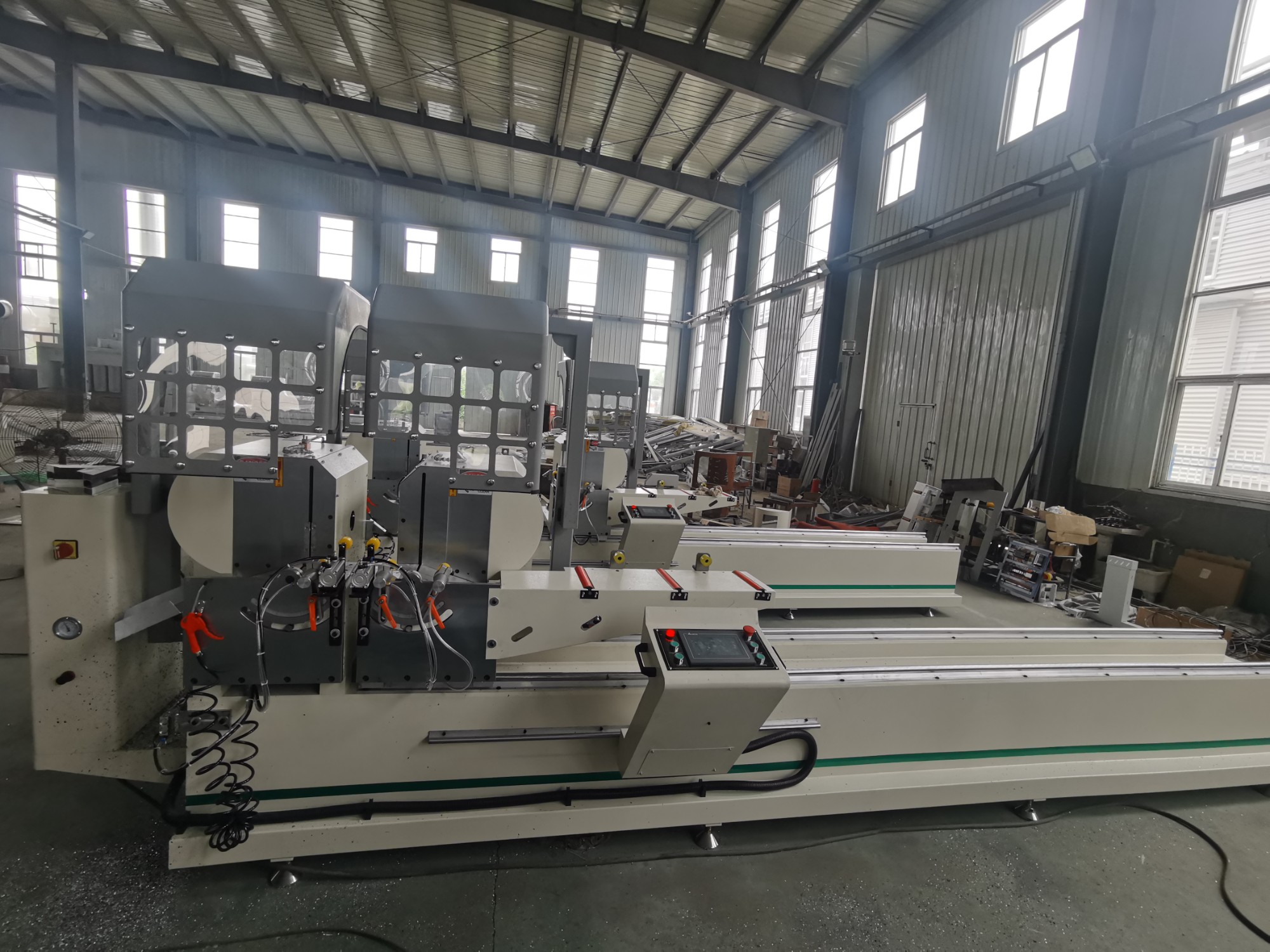

CNC Double-Head Cutting Saw

1. Model No:LJG2-CNC-500*4500
2. Cutter Diameter:Outside 500mm Inner 30mm
3. Cutting angle: -45°-90°+45°

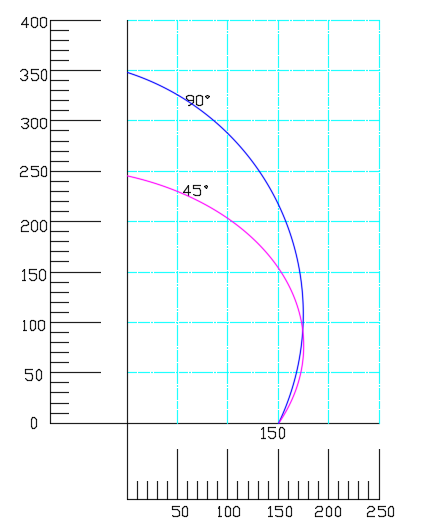

4. Cutting Width X Height:170*200mm

CNC Double-Head Cutting Saw Main Features

1.It is used for cutting aluminum alloy and curtain wall profile

2.It has features of high efficiency, perfect safe guards and is suitable for large-scale production

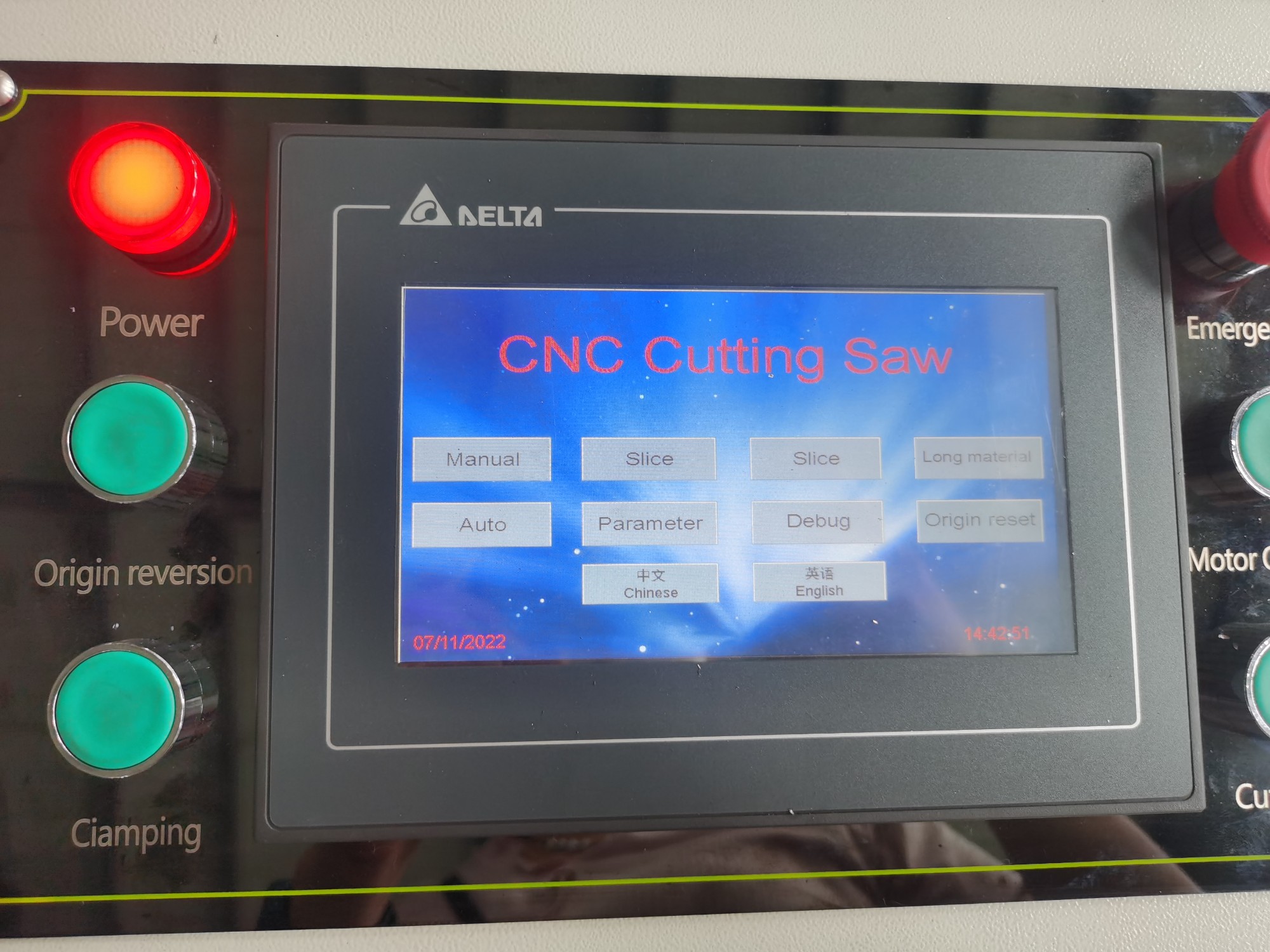

3.The CNC technology can cut different standards profile automatically

4.Adopt steel structure design to ensure excellent reliability, no easy to be out of shape

5.The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth

6.The imported guide rails and the linear motion pair can realize high precision and accurate location

7.The heads return automatically

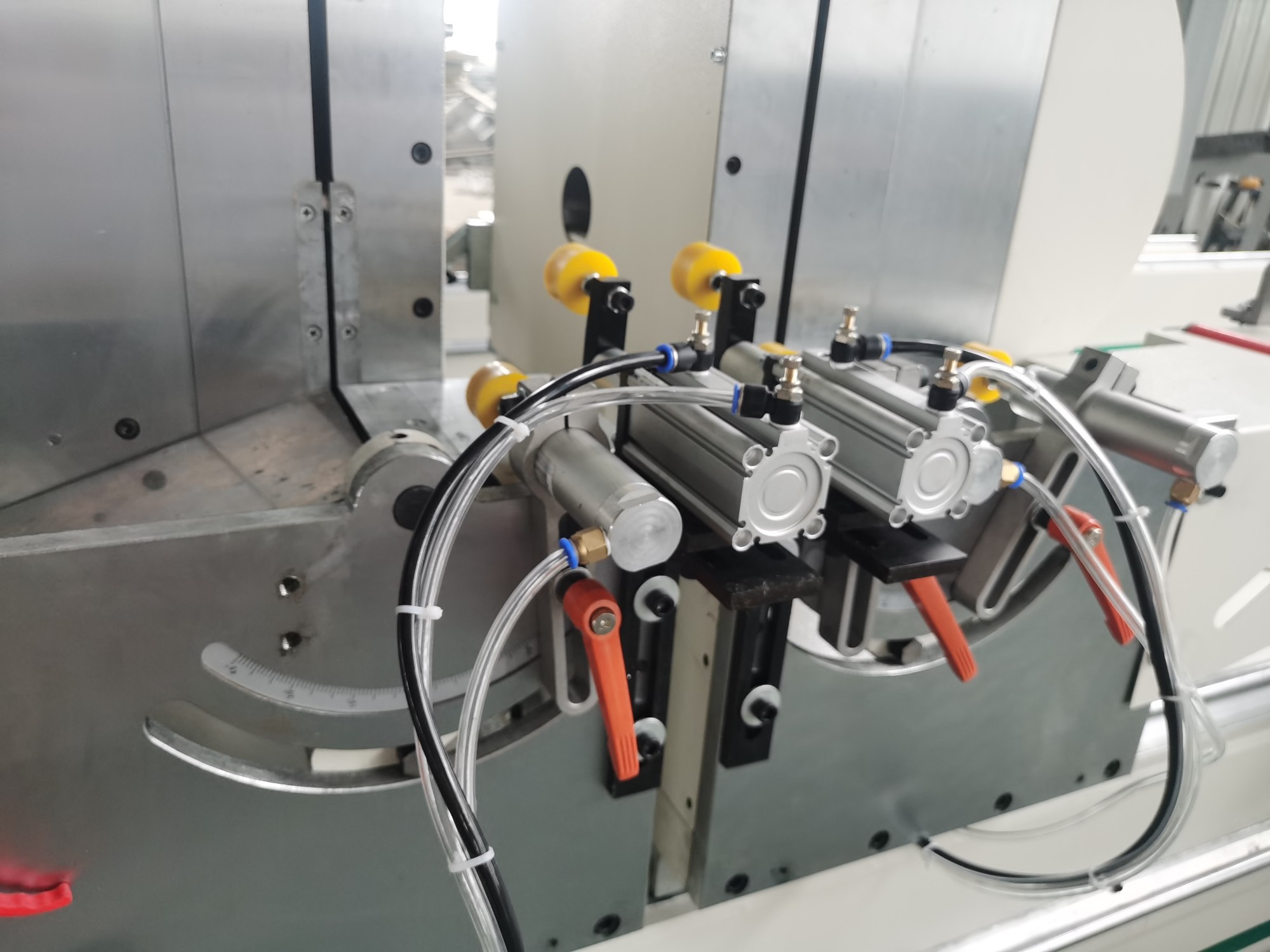

8.The two-way location and clamping features with high precision and steadiness

9.The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere

10.The cutting angle can change in +45°-90°--45°

11.It has the function of cutting ultra-short and extra-length profiles

Main Technical Parameter:
