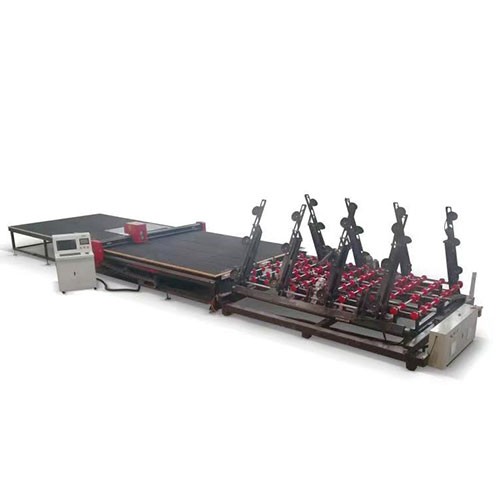

CNC Glass Cutting Line

CNC Glass Cutting Line Main Features:

Production line includes three machines:

1.Auto glass loading machine

2.Glass cutting machine

3.Glass breaking table

 Machine overview

1). Full-auto glass loading machine is machine takes one piece of glass from racks, flip to horizontal countertop, which can be transported

glass to next processing machine(Such as glass cutting machine.

2). Vacuum system uses well-known brand of vacuum pump, greatly improving the safety and stability of the whole system; the mainframe

driven by the motor in the dual-track movement, the main frame arm with sucker arm, each arm has three suckers Tune. When the suction

cup touches the original piece glass on the glass frame, the vacuum pump starts to work, the sucker produces a vacuum to suck the glass,

and when the vacuum reaches the set value, the flip arm is lifted and turned to Horizontal position, exhaust, the glass will be transported to

the X-axis end and positioning, waiting to convey to the cutting machine. The entire operation process is controlled by PLC.

Technical Description

1). Flip mode: mechanical flip, running fast, stable operation, without any fitter, to meet the 3 ~ 19mm glass on the film. Assembly

double-track flip chain protection, to ensure that the flip process safe and reliable,

2). Flip angle: 95 ~ 98 degrees adjustable. Can meet a variety of angles on the glass frame.

3). Suction depth: a special connecting rod telescopic mechanism, sucker can be extended by 150mm, to meet the depth of 700mm on

the film, without any auxiliary frame, can be directly from the iron frame on the film operations.

4). Induction device: the use of two sets of glass photoelectric sensor (a set, a set of spare), can effectively eliminate the failure caused by

induction failure. Equipment operation more secure stable and reliable.

5). Lifting device: Unique connecting rod lifting device, to ensure that the lifting action synchronized, put an end to the lifting of the steps

are not synchronized defects. Can guarantee the safety of glass fragments.

6). Adsorption device: Sucker adopts advanced double-layer adsorption structure (inside and outside the two layers), suction film is more

solid, put an end to the suction cup outer layer of the leakage caused by leakage.

7). Suction cup control: each sucker has a separate valve for switching control, free to choose the number of suction cups to facilitate the

operation of various sizes of glass on the demand.

8). Lifting the protection of the film: a unique device to take the film lifting protection device, which can effectively prevent the glass is not

timely due to the film caused by the glass associated with glass damage caused by the phenomenon.

9). Alarm device: with automatic detection and traffic lights alarm device, the abnormal situation can automatically alarm and display. With

emergency stop switch, can be in the event of abnormal control.

10). Operating mode: The device has two modes: automatic mode and manual mode. Easy to operate intuitive

11). the user interface: the use of color LCD touch screen display interface, Chinese and English display module, easy to operate.

12). parameter setting: the order of the film and the number of pieces per station can be digitized automatically set, with the cutting

machine automatically connected machine, automatic machine walking, automatic film, to achieve continuous film, without repeated

operation , More convenient and quick.

Technical Parameters:

1. The cutting thickness: 2-19mm

2. The cutting accuracy: Parallelism:≤±0.15mm/m

3. The cutting speed: 150m/minute(can be adjustable)

4. The outline size:7500×4000×1500mmmm;

5. The max cutting size 6100*3300mm

6. Transmission system: The X、Y、Z Axis are equipped with YASKAWA JAPAN servo motor.

7. The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and

down.(It can cut any shape)

8. The oiling supply method: Auto oiling.

9. The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.

4.Mechanical

1. The material of the tabletop: Metal tabletop(deformation will not happen)(The smoothness≤±0.2mm/m)

2. Rack/Guides: Imported from Japan and switzerland.

3. Transmission belt/Transmission belt wheels: Italy.

4. Cutter wheels/cutter holder: BOHLE GEMANY.

5. The tabletop: Industrial blankets imported from Korea (color in black).

6. Turret: It use the pneumatic pressure and the spring pressure at the same time to

make the cutting best.
