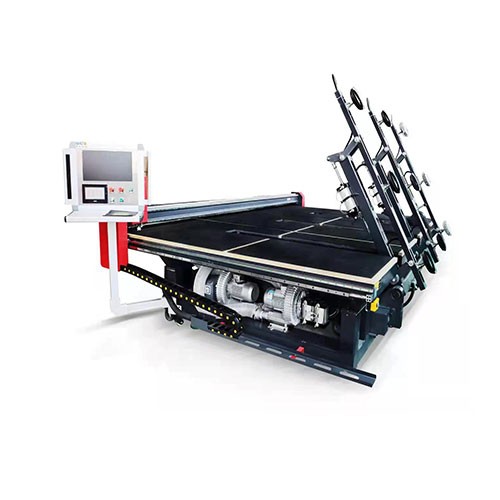

Automatic Glass Cutting Machine

Glass Cutting Machine Main Features:

1.Innovative system is the only one can guarantee perfect uniformity and constant quality of all the machines that are being built and every

   single parts of machines can be easy to replace if needed, even the felt table surface.

2.Control panel with incorporated independent Computer , software packet with optimization program developed in Multitasking systems,

  user graphic interface for the managing of the cutting cycle and machine monitoring , hydraulic tilting surface, air cushion,  ventilator for

  the movement of the sheet on the surface.

3.Famous imported Electrical components or reliable domestic brands to make high cutting precision and stability, can meet all kinds of

  shapes of glass cutting.

4.Automatic oil injection and automatic constant pressure regulation functions, effective way to ensure the stability of the cutting and

  cutting effect. Simple, easy to manage, no special requirements for operators, easy training to start, unskilled workers will be able to

  operate it too.

5.Safety of the glass presence

6.Automatic sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets

7.imported cutter wheels and setting tool.stable voltage power supply,English cutting software, instruction,AUTOCAD Designed graph and

   figure,all cutting are fully CNC Control

Technical Parameters:

1. The cutting thickness: 2-19mm

2. The cutting accuracy: Parallelism:≤±0.15mm/m

3. The cutting speed: 150m/minute(can be adjustable)

4. The outline size:3400*2200*900mm;

5. The max cutting size:2440*2000mm

6. Transmission system: The X、Y、Z Axis are equipped with reliable motor.

7. The cutter block: It adopt pneumatic and spring at the same time. the cutter holder can rotate by 360°degree, and cut the glass up and

    down.(It can cut any shape)

8. The oiling supply method: Auto oiling.

9.The transportation device: It adopt Flotation device which makes it convenient to move the sheet glass.
