1. Model Number:SQJ06-120
2. Driven Way:Pneumatic
3. Max Profile Range:120w X 120h

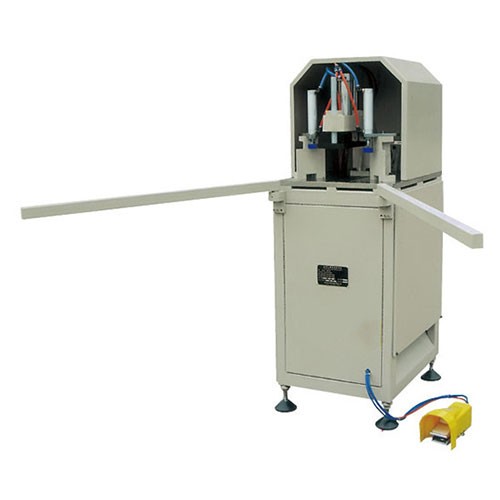

Corner Cleaning Machine Main Features
1.Cleaning the 90° corner of frame or sash(only for up/bottom surface)
2.High processing quality.
3.Easy operation, high efficiency.
Technical Parameter Details
Air Pressure | 0.5-0.8MPa |
Air Consumption | 80L/min |
Profile Height | 15-120mm |
Profile Width | 20-120mm |
Drawing groove width | 3mm |
Drawing groove depth | 0.3mm |
Overall Dimension | 1050 x 670 x 1370mm |
Weight | about 100kgs |
