Welcome: Shandong Flad Machinery Co., LTD
sales@fladmachine.com
0086-156-8969-7169
1. Model Number:SQJ05-120
2. Driven Way:Pneumatic
3. Max Processing Width X Height:120 X 120mm

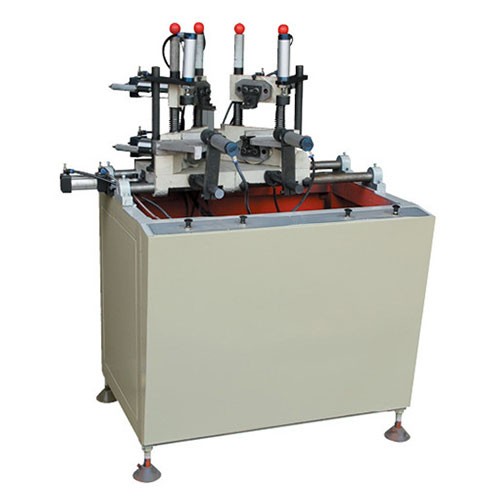

V-Corner Cleaning Machine Main Features
1. Special for mullion V-shaped welding and cross welding cleaning.
2. Special centering device for easy adjusting
3. Reliable clamping and high processing quality.
4. Two hand safety operation.
Technical Parameter Details
Milling Cutter Rotate speed | 2800r/min |
Air Pressure | 0.5-0.8MPa |
Profile Height | 40-120mm |
Profile Width | 40-120mm |
Drawing groove width | 3mm |
Drawing groove depth | 0.3mm |
Overall Dimension | 930 x 690 x1300mm |
Weight | about 100KGS |
