1. Model Number:LJP2Z-400X3500
2. Voltage:380V 50Hz
3. Diameter of the Blade:Ø400

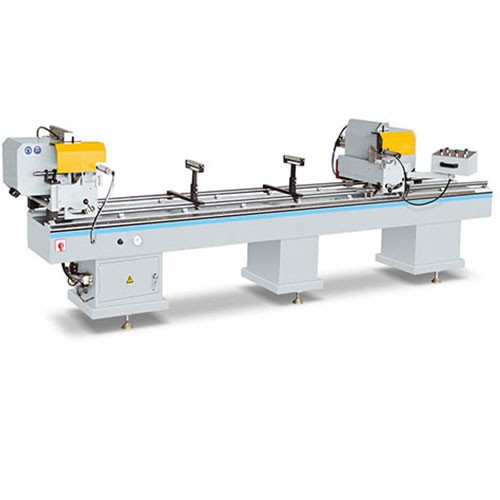

Double Head Cutting Saw for uPVC Profile Main Features
1.This machine is used for processing the aluminum and plastic profiles at angles of45 ° 90°
2.The swaying stable feeder is adopted.
3.The pneumatic driving system is used in profiles clamping and cutting
4.It has the features of easy operation and high accuracy.
Technical Parameter Details
Operation Air Pressure | 0.5--0.8MPa |
Air Consumption | 100L/min |
Input Voltage | 380V 50Hz |
Cutting Angle | 90°---45° |
Saw Blade Specification | Ø400XØ60mm |
Cutting Width*Height | 100*150mm |
Cutting Length | 450---3500mm |
Overall Dimension | 4000*1000*1450mm |
Weight | 600kgs |
