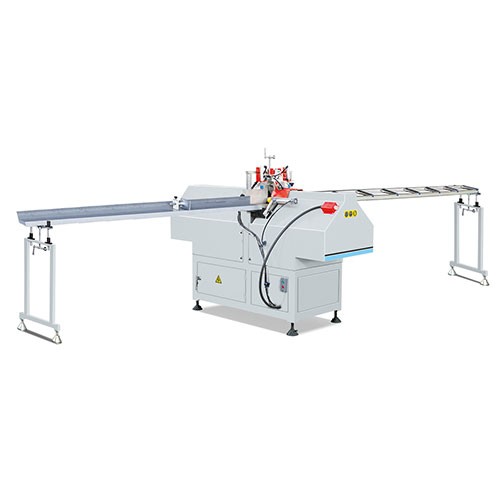

Mullion Cutting Saw for PVC Profile

1. Model Number:SVJ-45
2. Voltage:380V 50Hz
3. Max Profile Cutting Width:120mm

Mullion Cutting Saw for PVC Profile Main Features

1.This machine is used for mullion cutting of plastic door window.

2.Two cutting blades are in the space of go degree layout, a clamp is installed at the same time to complete two v-shaped cutting head, with high cutting precision and high productivity,

3.Horizontal structure for high cutting precision.

4.Special clamping device, no pop material.

5.Cutting waste is produced in the curf only, make good use of the profiles.

Technical Parameter

Power supply	380V 50Hz
Cutting motor power	2x1.1Kw
Motor rotary speed	2800r/min
Operation air pressure	0.4-0.6MPa
Air consumption	80L/min
Cutting width	120MM
Cutting length	300-1600mm
Contour dimension	1900×700×1350mm
Weight	About 210kgs
