1. Model Number:WBL1600-3
2. Voltage:380V 50Hz
3. Max Washing Size:1600mm

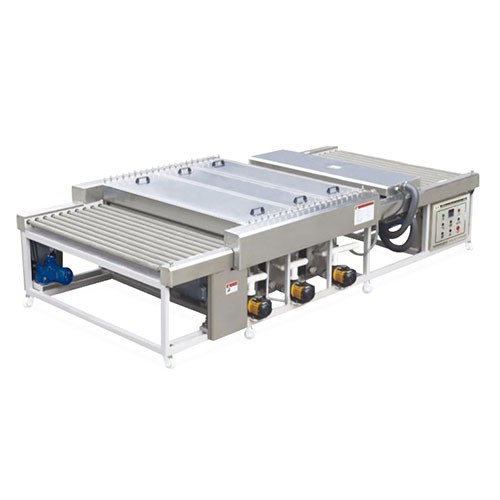

Flat Material Washing Machine Main Features
1.WBL1600-3 type glass cleaning machine adopt horizontal structure, suitable for washing and drying of flat materials;
2.Main section make up loading ,washing,drying,unloading;
3.Step-less speed adjustment,chain transmission;
4.The whole machine adopts three water tank, three levels of cleaning, three sets of waterproof, three sets of filtration;
5.There are seven pairs of nylon brushes and four pairs of imported absorbent cotton.
Technology Parameter Details:
Model | WBL1600-3 |
Delivery Speed | 0-5m/min |
Max Glass Size | 1610*2000mm |
Min Glass Size | 500*500mm |
Glass Thickness | 2-12mm |
Total Power | 14kw |
Machine Size | 4500*2100*1020mm |
Weight | 1350kgs |
