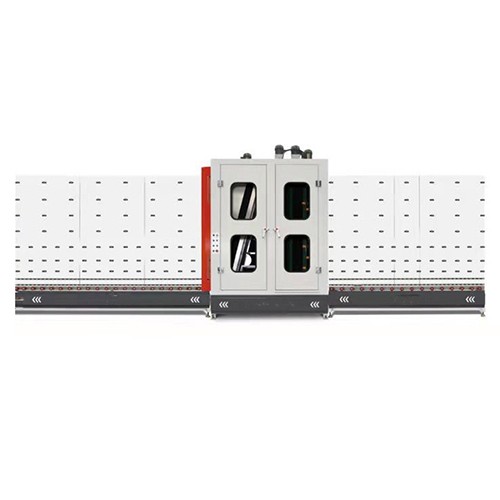

Vertial Glass Washing Machine

1. Model Number:VBL-2500
2. Voltage:380V 50Hz
3. Max Washing Size:2500mm

Vertial Glass Washing Machine Main Features

1.It is painted by an electrostatic paint for protection against a rust and scratchs. 2.Conic moving gears are made from a special steel alloy. 3.Nuts corrosion-proof, apertures for nuts aluminium. 4.A working direction of action with left on the right party. 5.Brushes from above and from below have adjustment for approach. 6.The electro system corresponds to safety rules. 7.Heating up plates and water tank from stainless steel. 8.Special brushes for reflecting glasses. 9.Adjustment of speed of a running tape. 10.Covers stainless steel windows. 11.LOW-E&coating glass are available.



Technology Parameter Details


Voltage

220V/380V/415V

Power

27kw

Max. width

2500mm

Min.  size

500x300mm

Feeding speed

0-7m/min

Glass thickness

3-12mm

Dimension(L*W*H)

6400x2400x4200mm

Weight

3500kg
