1. Model Number:FSZKJ80
2. Voltage:380V 50Hz
3. Max Drilling Hole Diameter:80mm

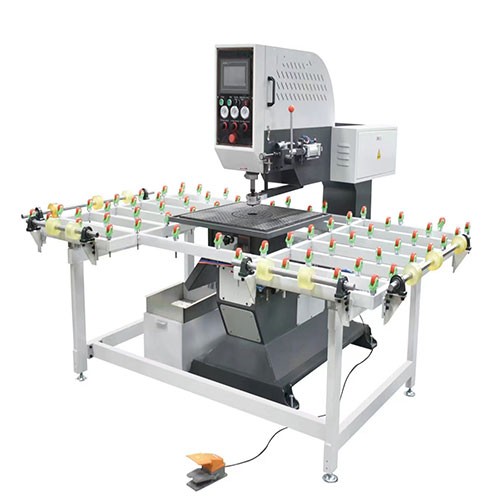

Glass Horizontal Drilling Machine Main Features
This machine adopts pneumatic clamping glass,the upper and lower drill bit successively drill holes, automatic discharge. Automatic storage out of the material, a wide range of processing area.
Main Technology Parameters
Diameter of drilling hole | Φ4-φ80mm |
Glass Working Thickness | 3-25mm |
Max size of the processing glass | 1200*1800mm |
Voltage | 380V 50Hz |
Total Power | 2.5kw |
Driller Speed | 850r/min, 1400r/min, 2300r/min |
Overall Dimension | 2500*2100*1700mm |
