1. Model Number:FSZKJ220
2. Voltage:380V 50Hz
3. Max Drilling Hole Diameter:220mm
4. Working Way:by manual

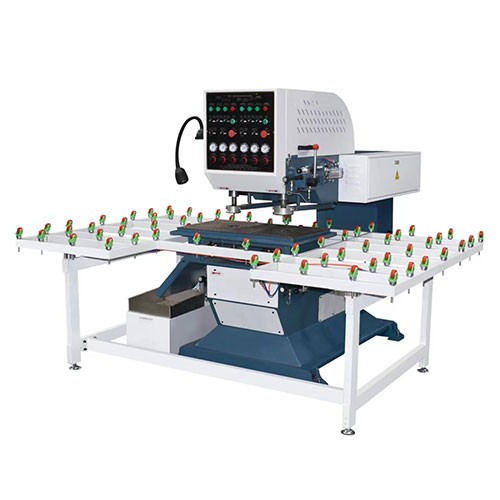

Horizontal Glass Drilling Machine Main Features
This machine adopts pneumatic clamping glass,the upper and lower drill bit successively drill holes, automatic discharge. Automatic storage out of the material, a wide range of processing area.
Main Technology Parameters
Diameter of drilling hole | Φ4-φ220mm |
Glass Working Thickness | 3-20mm |
Max size of the processing glass | 2600*1800mm |
Voltage | 380V 50Hz |
Total Power | 3kw |
Overall Dimension | 2200*2600*1700mm |
