1. Model Number:SYJW-1800
2. Voltage:380V 50Hz
3. Max Cutting Width X Height:120X 29mm

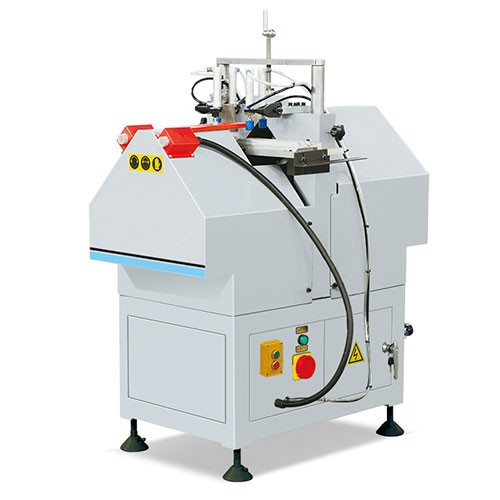

Glazing Bead Saw for PVC Profile Main Features
1.For 45° glass batten cutting
2.One time to cut two pieces of glass batten
Main Technical Parameter
Input Voltage | 380V50Hz |
Cutting Motor Power | 2*1.1kw |
Motor Rotary Speed | 2800r/min |
Air Pressure | 0.4--0.8Mpa |
Air Consumption | 80L/min |
Cutting Width | 120mm |
Cutting Height | 29mm |
Cutting Range | 320--1800mm |
Contour Dimension | 1900*700*1350mm |
Weight | 160kgs |
