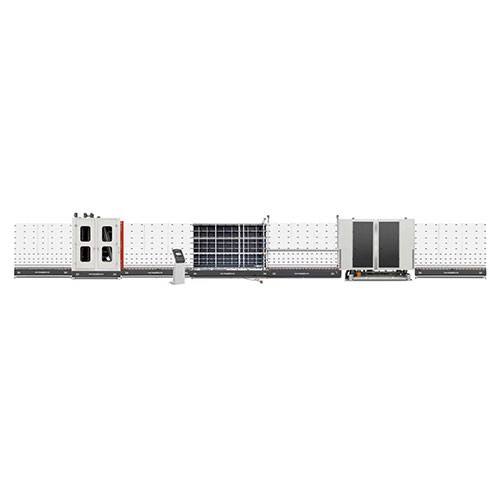

LB2000A Insulated Glass Machinery

1.Max processing glass size 2000*3500mm
2.Automatic PLC control system, touch scree man-machine interface
3.Full frequency converter controls speed regulation
4.Automatic identification of coating and LOW-E glass

Insulated Glass Machinery Details:

1. Automatic PLC control system, touch screen man-machine interface.

2. Automatic identification of coating and low-E glass.

3. Dynamic display of equipment operation and failure

4. Automatic detection of glass length, width and thickness, automatic adjustment of the best inflation space, saving time and gas

5. Precision pressing function of servo system

6. Servo linkage of laminating machine, laminating, tableting, and inflating are completed in one station

7. Ensure the argon content of insulating glass ≥85%(GB/T11944-2012 new national standard)

8. Automatic aluminum frame positioning system(*optional)

9. Remote communication function(*optional)

10. Three-sided/Four-sided size film function(*optional)

Technical Details:

Item	LB2035A	LB2033A	LB2030A
Total Power	28.25KW
Max Glass Size	2000*3500mm	2000*3300mm	2000*3000mm
Min Glass Size	300x540mm
Glass Thickness	3-12mm
Max IG unit thickness	12-60mm
Glass Washing Speed	2-9m/min
Working Speed	0-45m/min
Trip Dimension(optional)	X 0-150mm Y 0-50mm
Air Pressure	0.8m³/min(1MPa)
Water Electrical Conductivity	≤30 ųs/cm
Overall Dimension	24500x2200x3000mm	23600x2200x3000mm	2300022003000mm
