1.Model number:LB2500S
2.Voltage:380v 50Hz
3. Max processing glass size:2500*3500mm(could customized 2000*3000/3300/2500mm)

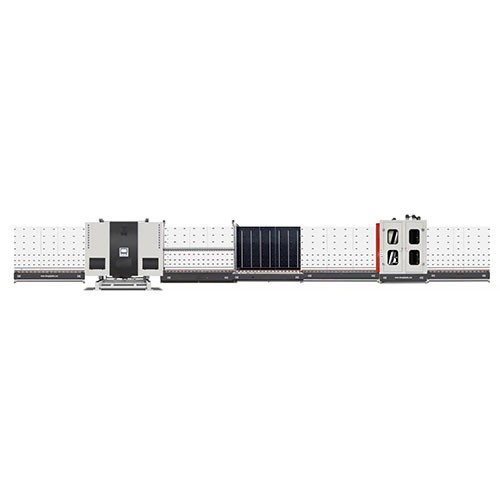

Insulating Glass Production Line Details
1. Automatic PLC control system, touch scree man-machine interface
2. Full frequency converter controls speed regulation
3. Automatic identification of coating and LOW-E glass
4. Dynamic display of equipment operation and failure
5. It can produce and process double glass, three glass and four glass(*optional)
6. Precision pressing of screw servo system
7. The pressure plate can be opened, which is convenient for equipment maintenance
Technical Details:
Item | LB2535S | LB2530S | LB2030S | LB2025S | |
Total Power | 26.55KW | ||||
Max Glass Size | 2500*3500mm | 2000*3300mm | 2000*3000mm | 2000*2500mm | |
Min Glass Size | 300x540mm | ||||
Glass Thickness | 3-15mm | 3-12mm | |||
Max IG unit thickness | 12-60mm | ||||
Glass Washing Speed | 2-9m/min | ||||
Working Speed | 0-45m/min | ||||
Trip Dimension(optional) | X 0-150mm Y 0-50mm | ||||
Air Pressure | 0.8m³/min(1MPa) | ||||
Water Electrical Conductivity | ≤30 ųs/cm | ||||
Overall Dimension | 24200x2500x3400mm | 22500x2500x3400mm | 22000*2100*3000mm | 19500*2100*3000mm |
