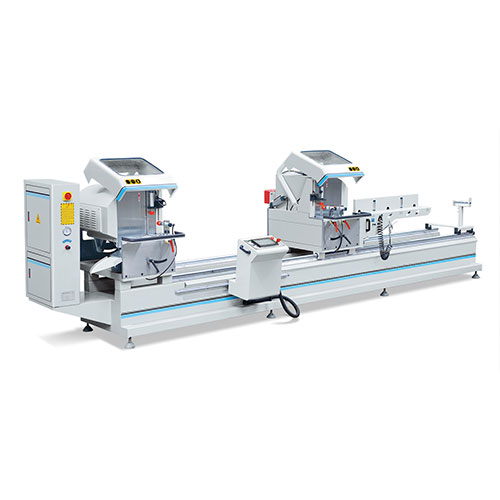

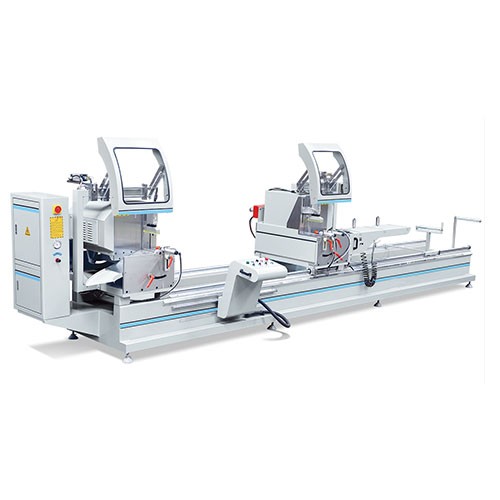

Precision Double Head Cutting Saw

1. Model Number:LJZX-600X5000
2. Voltage:380V 50Hz
3. Diameter of the Blade:600mm

Precision Double Head Cutting Saw Main Features

1.It is used for aluminum profile and curtain wall profile cutting to use φ600 saw blade

2.Imported saw blade give accurate processing and high endurance

3.Imported linear bearing motion pair ensured steady processing accuracy

4.Large processing range

5.Saw blade rotate smoothly due to high accuracy main spindle

6.Uniform speed feeding and smooth motion due to gas-liquid damping

7.Auto-opening guard shield ensured safety operation

8.Adopts imported linear guide rail, with high accuracy and long service life

9.45°and90° cutting is available

Main Technical Parameter Details

Cutting Motor Power	2*3 kw
Input voltage	380V 50hz
Air Consumption	0.6--0.8Mpa
Main Rotary Speed	2800r/min
Cutter Diameter	Inner 30mm Outside 600mm
Cutting Length	90 degree Min 430mm outside 45 degree Max5000mm
Cutting Width X Height	200*200mm
Contour dimension	662017501950mm
Weight	2200kgs
