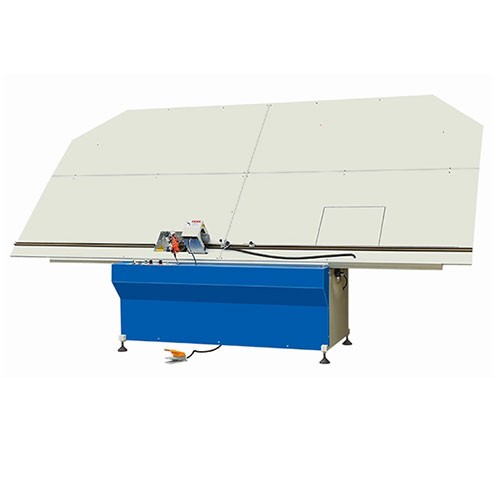

Aluminum Spacer Bar Bending Machine

1. Model number: LZJ-01
2. Voltage: 220V 50Hz
3. Working way: By manual

Aluminum Spacer Bar Bending Machine Details:

1. Semi-automatic Insulating Glass Spacer Bar Bending Machine is used for all kinds of insulating glass spacer bar rectangle and square spacer frame bending only.

2. The spacer bar bending machine can finish locating, 90 degree corner bending and cutting automatically.

3. The machine adopt a simple PLC controller.

4. It features easy operation, reliable positioning and sturdy.

Technical Details:

Power voltage/frequency	220/380V / 50HZ
Total power	2.5 KW
Air pressure	0.5 ~ 0.8Mpa
Min. spacer frame size	350 x 350mm
Max. spacer frame size	2500 x 2500mm
Spacer width range	6mm ~ 27mm
Processing Speed	0~120 m/min
Overall dimensions	4400x1600x2300mm
Production tolerances	+/- 0.5mm
