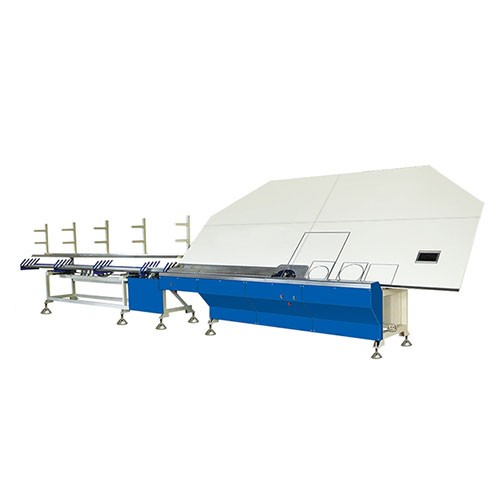

CNC Aluminum Spacer Bar Bending Machine

CNC Aluminum Spacer Bar Bending Machine Details:

1.Aluminum profile required:High frequency welding can bend aluminum strip or bend warm edge strip

2.The equipment adopts touch screen control and human-computer interaction interface to facilitate operation control and equipment maintenance.

3.The independent blade is used for bending. The blade is processed with special steel and is durable.

4.Automatic splicing of aluminum strips, intelligent avoidance of rectangular frame aluminum strip joints

5.The material is automatically broken, and the fracture burrs are small and easy to remove, without affecting the next process and the appearance.

6.The automatic splicing system of aluminum bars has a patent certificate, and the splicing work is stable and reliable without any impact on continuous processing.

7.Intelligent calculation of the remaining aluminum strip length.

8.Bending speed is selectable. (You can choose automatic deceleration or fixed bending speed)

9.The equipment can switch to manual debugging mode. In manual mode, workers can conveniently debug or inspect

10.Processing speed: In continuous working mode, the average single processing time for processing 1000mm*1000mm 12A aluminum frame is less than or equal to 25 seconds (including automatic splicing time)

11. Processing database: 120 size settings, the maximum number of each size is 9999.

12.Processing scope: rectangular frame (one-time forming frame: minimum 300mm*300mm, maximum 2000mm*2000mm; if it exceeds 2000mm, special-shaped frames can be automatically spliced to complete; secondary combination frame: 5000mm*2500mm). The error of each forming frame is within plus or minus 1mm.

13.The equipment has a pause function, which can be used for inspection or manual material receiving during processing.

14.Data can be imported via USB or network. (10 files can be stored in the USB flash drive at one time)

15.You can freely select the processing size in the database.
